PinchSim3D

3D Simulation for Pinch-off, Weld Lines, and Formability.

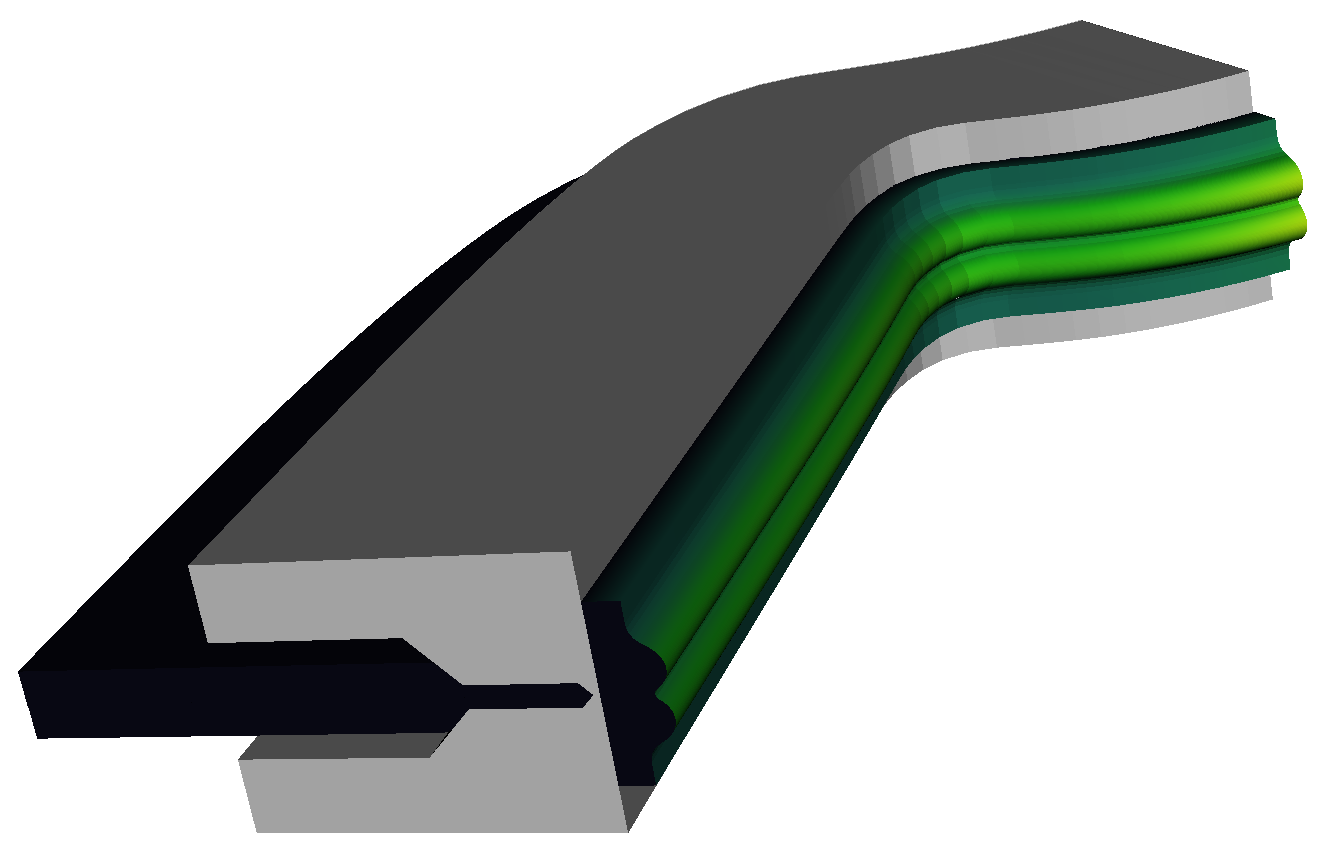

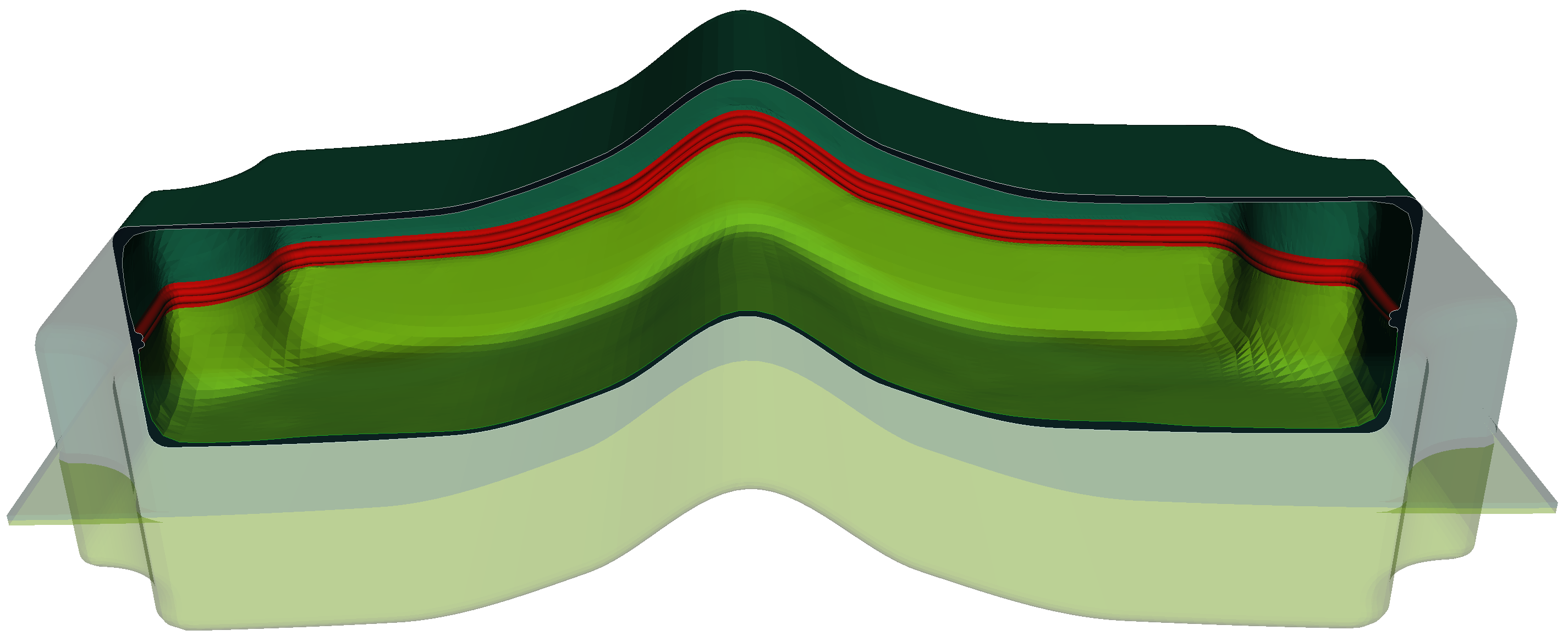

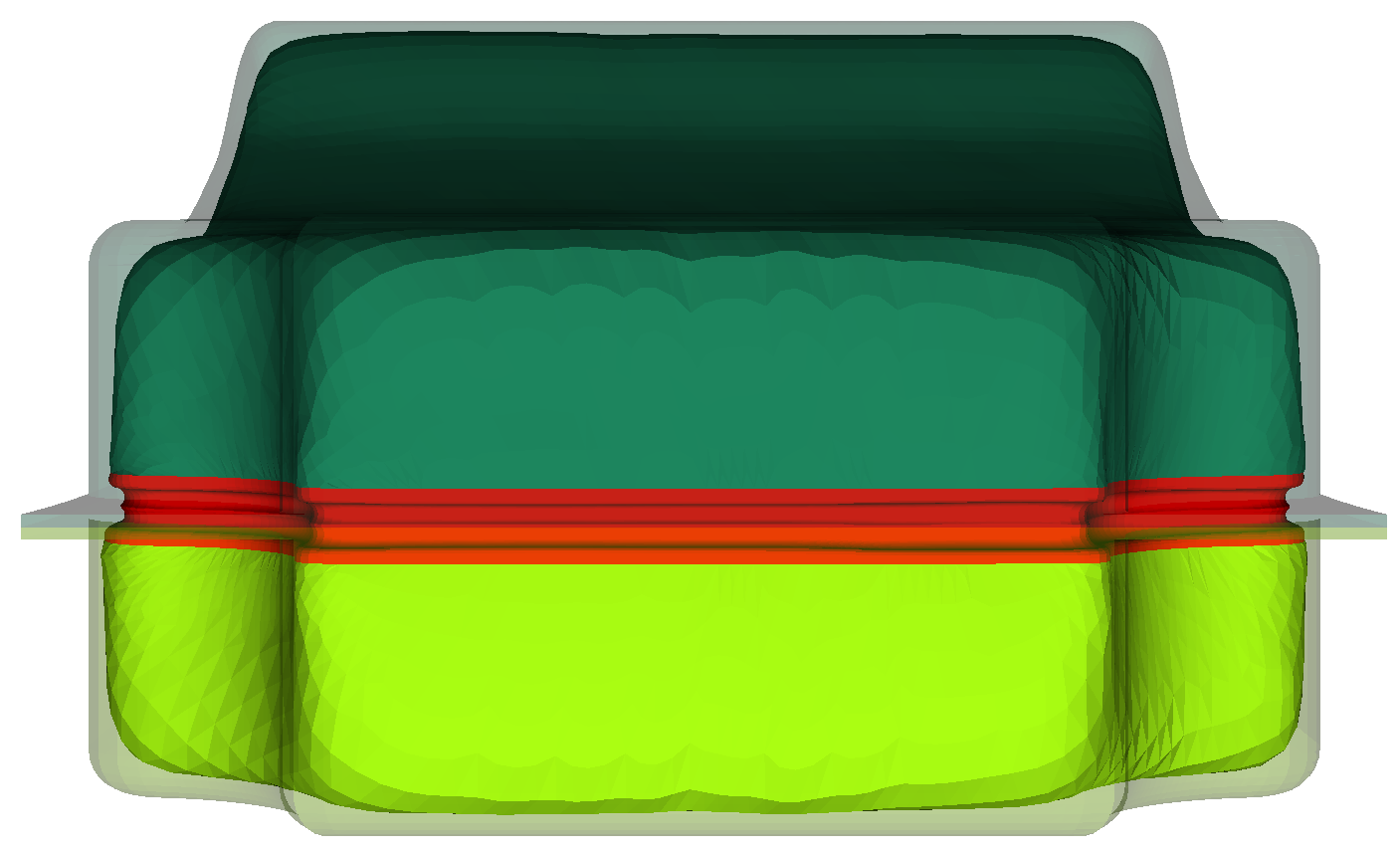

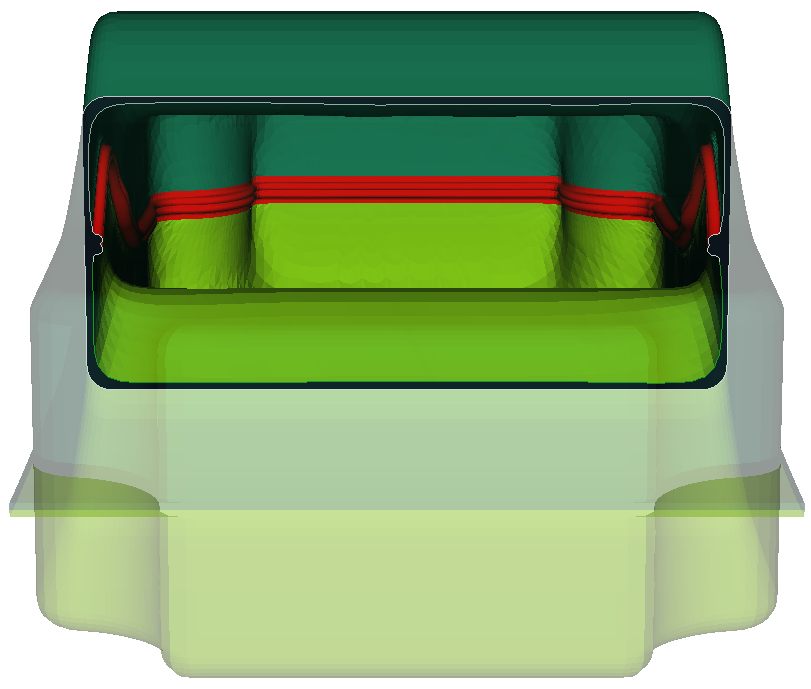

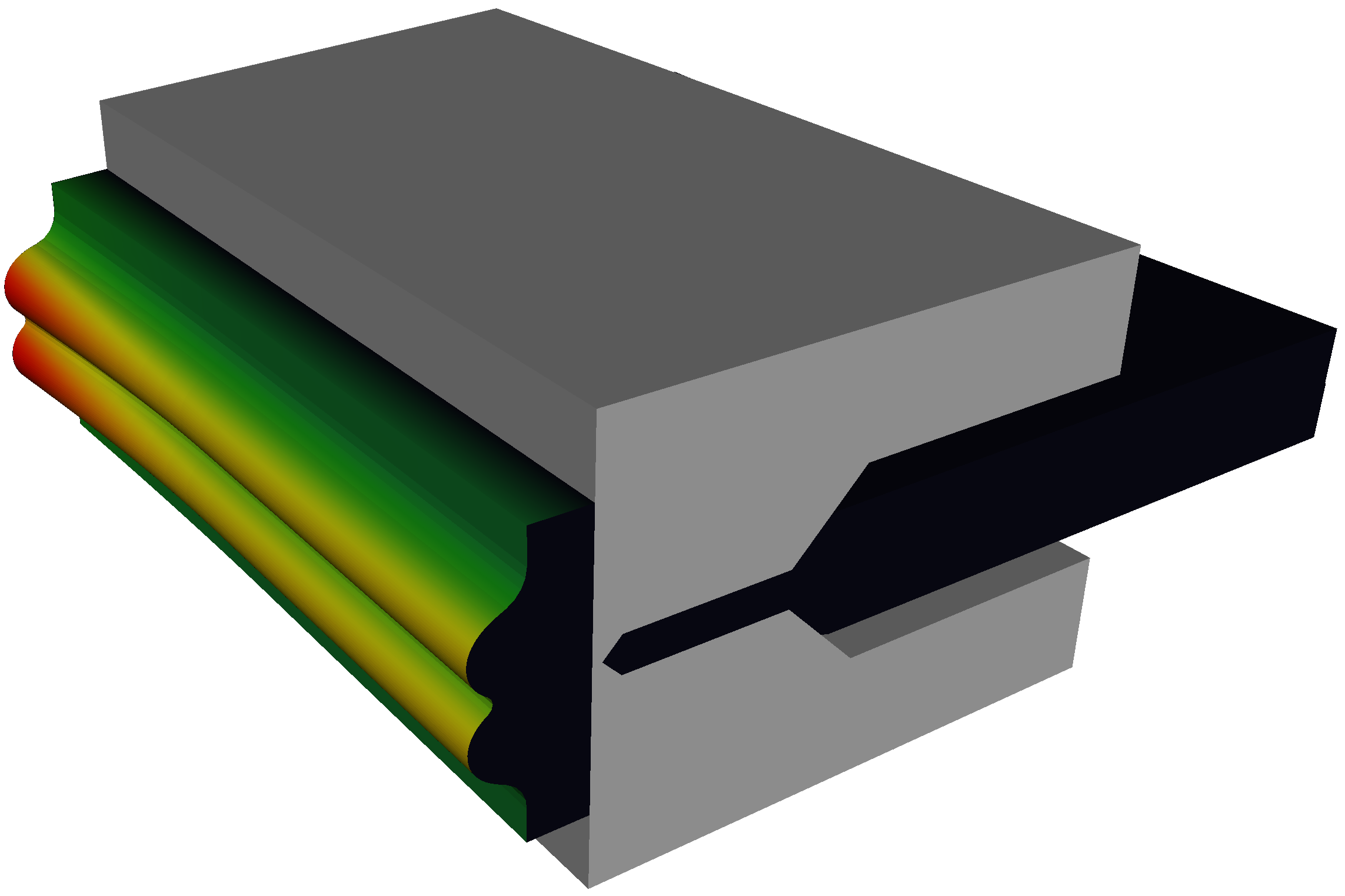

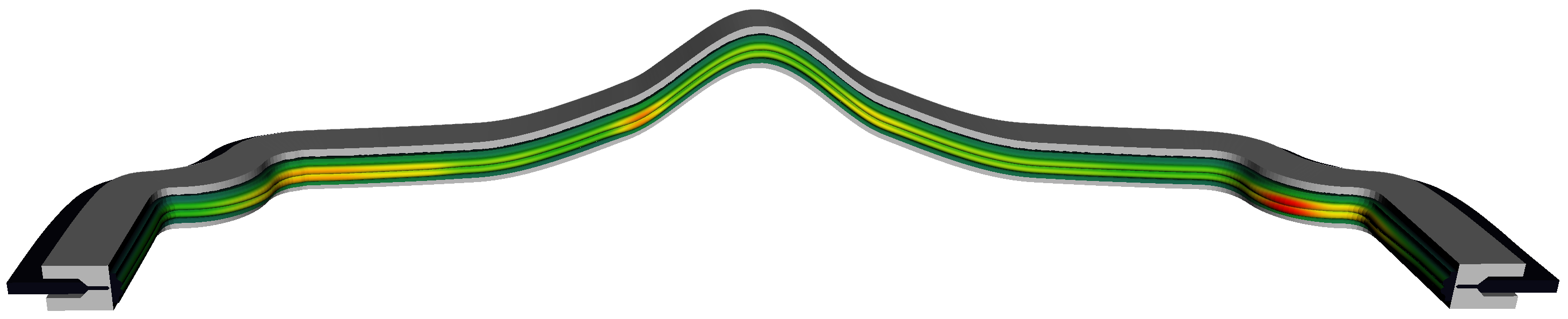

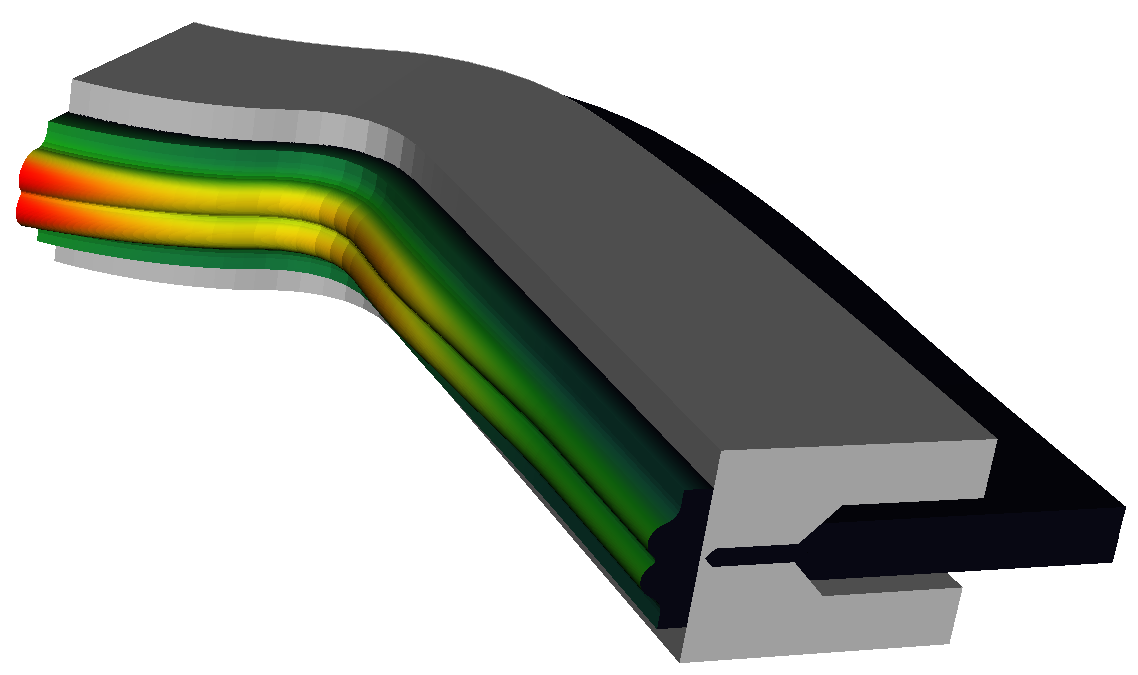

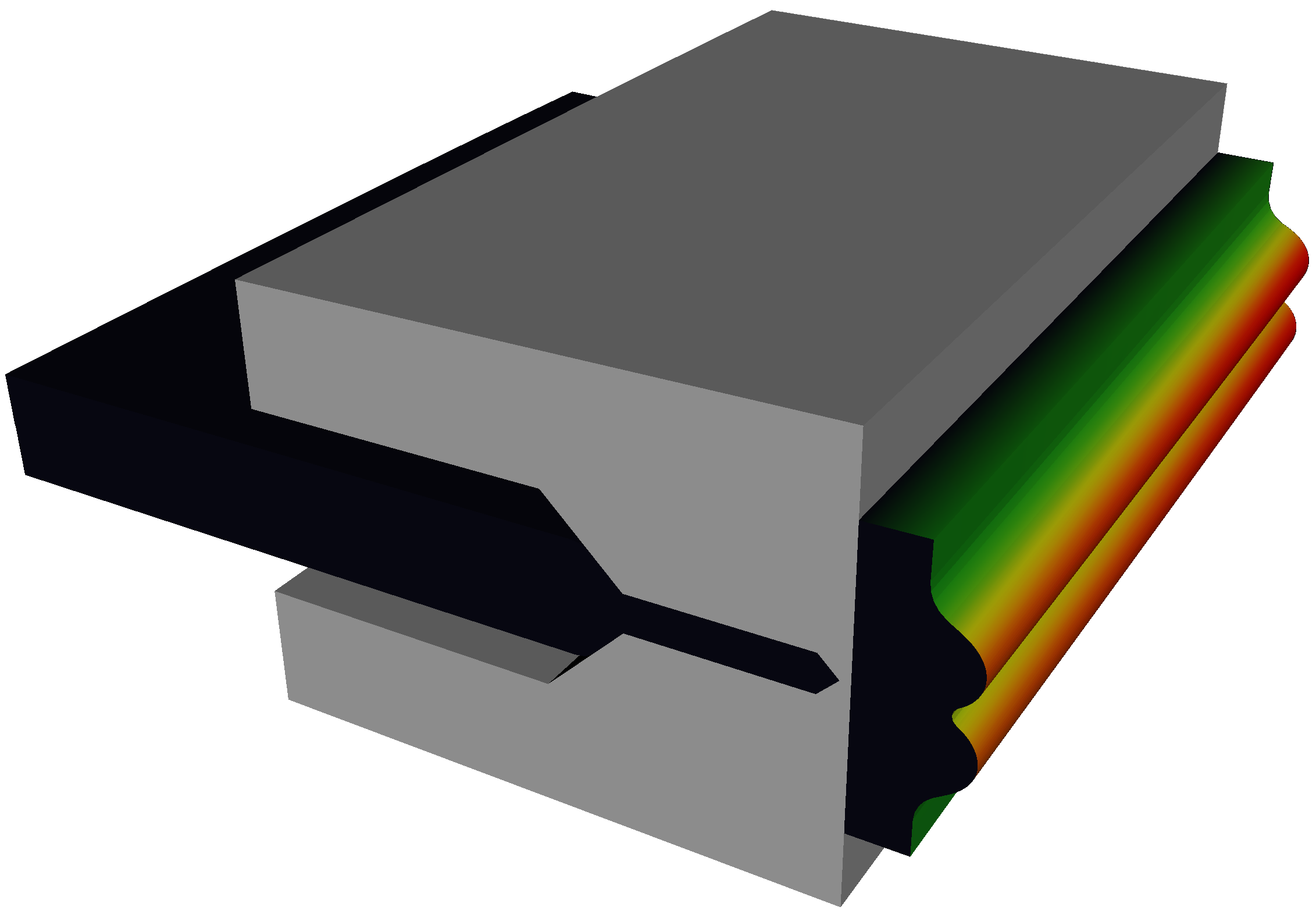

PinchSim3D is an advanced 3D simulation software for predicting the formability of materials, including inner skin thickness and weld line shape at the pinch-off. This tool improves manufacturing processes and reduces defects by simulating complex forming operations with precision.

• Predicts material behavior during manufacturing.
• Focus on inner skin and weld line integrity.
• Improves quality and reduces defects.
